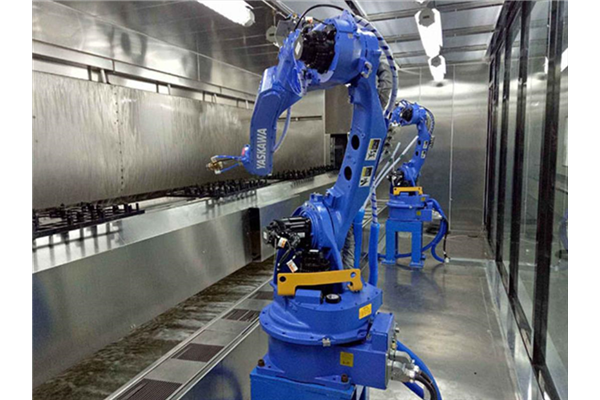

Spraying method: Choose a reciprocating machine (single axis, two axis, three axis, four axis, five axis, six axis, etc.) based on the spraying range of the product and the number of spray guns

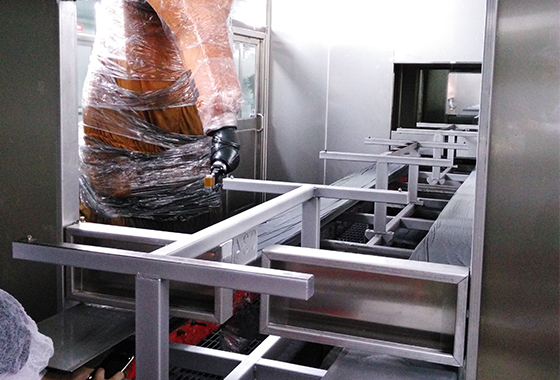

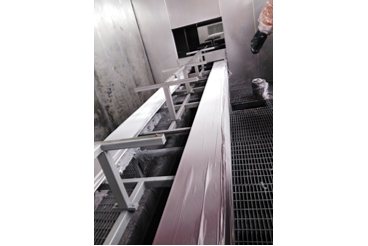

Conveying method: Mesh, belt, and chain can be selected as the operating materials for conveying, and manufactured according to the customer's requirements for width and length.

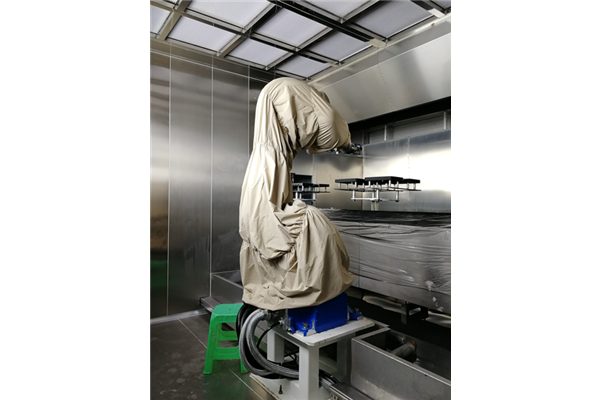

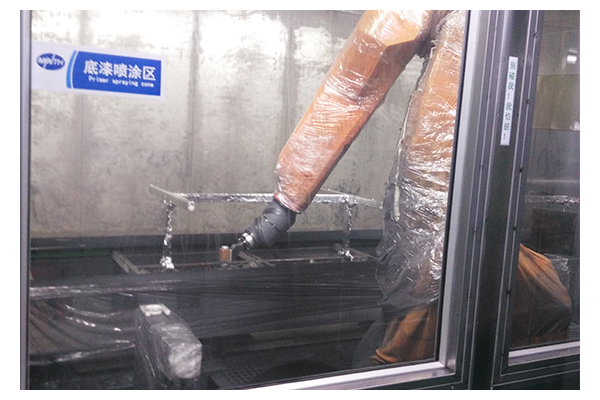

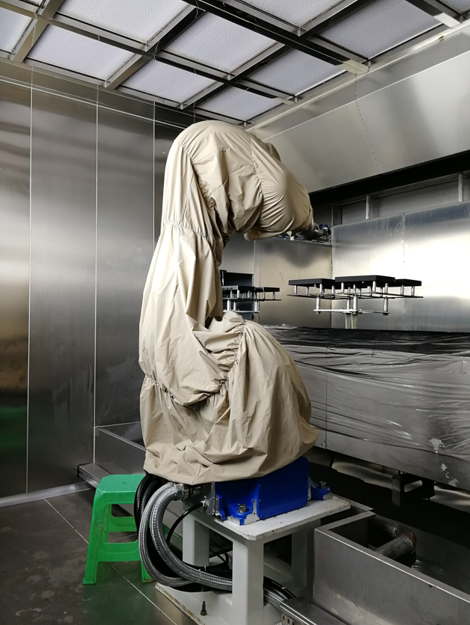

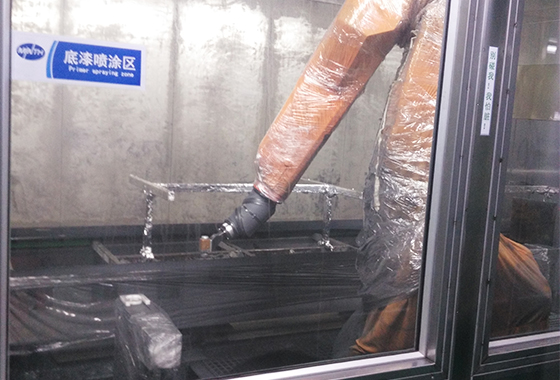

Spray environment: The spray booth adopts a water curtain or dry, Class 10000, Class 100000 dust-free spray room, and is sent into the spray room through an efficient air supply outlet; Constant temperature and humidity, etc;
Baking methods: tunnel oven, precision oven, far-infrared heating IR tube, UV curing;
Waste gas treatment: spraying and activated carbon filtration before discharge;
Output: depends on the tooling method of the workpiece, the baking time of the coating, and factors such as line speed;
Suitable for surface painting treatment of products such as plastics, hardware, wooden boards, glass, ceramics, magnets, etc;
Honghuaxin can provide a whole factory planning spray production line or manual spray to automatic spray.
The operation mode of the line can also be divided into tracking continuous spraying or step spraying, and the workpiece rotation mode has three forms: non rotation, 90 °, and 360 °
Composition and structure of spraying production line:
Manual loading and unloading, automatic conveyor line, manual dust removal/electrostatic automatic dust removal, preheating and dehumidification, automatic spraying equipment (reciprocating machines, robots, etc.), purification workshop, paint mist exhaust system, constant temperature and humidity air supply system, high-efficiency pressure equalization box, product surface leveling, drying, cooling system, central control system, wastewater and exhaust gas treatment system, etc
